Mechanical Seal for SE SV Submersible Pumps

الحد الأدنى لكمية : 1 قطعة الأسعار : USD50-1000
تفاصيل التغليف : مربع حسب الشرط وقت التسليم : 20-30days
شروط الدفع : / تي تي، ويسترن يونيون، خطاب الاعتماد القدرة على العرض : 100000 قطعة/شهر
مكان المنشأ: صنع في الصين اسم العلامة التجارية: JR
إصدار الشهادات: iso9001 رقم الموديل: AES SOS

معلومات تفصيلية

مادة: سيك سيك FKM وظيفة: لمضخة الزيت، مضخة المياه
رمز النظام المنسق: 848420090 شهادة: ISO9001
يكتب: لمضخة AES SOS معيار: معيار
مقاس: حجم مخصص طلب: ختم رمح
مواصفة: للختم الميكانيكي لمضخة AES أسلوب: الختم الميكانيكي AES SOS

منتوج وصف

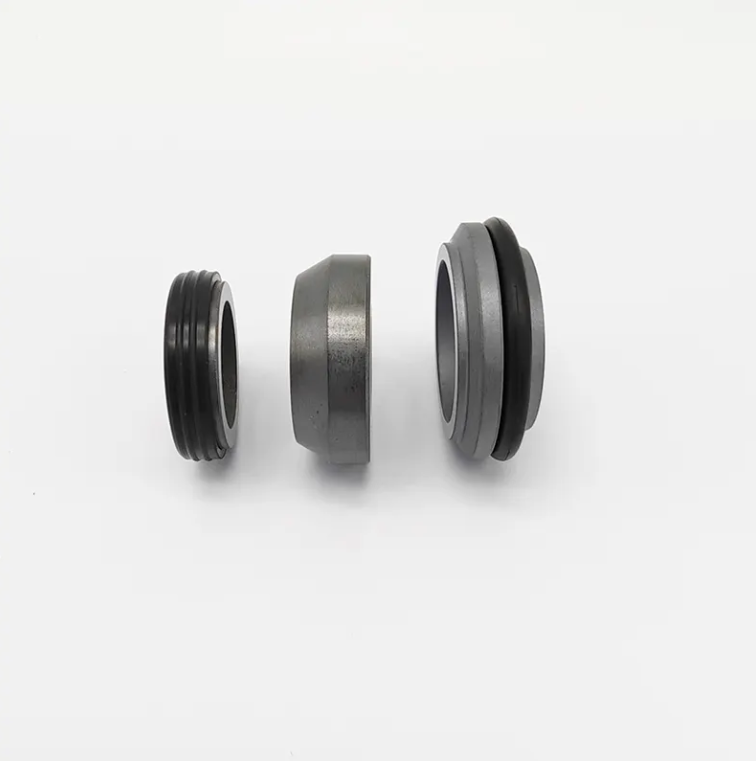

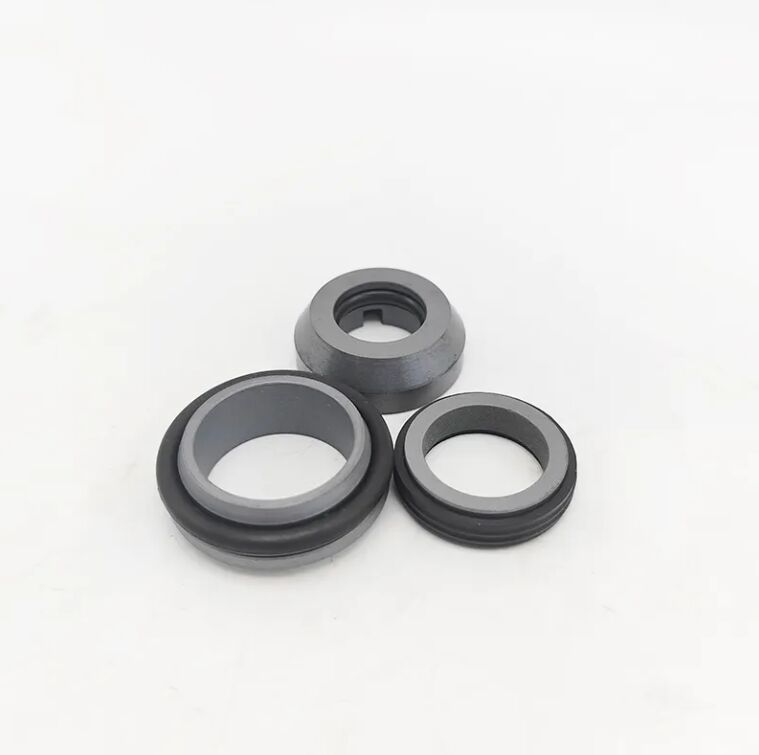

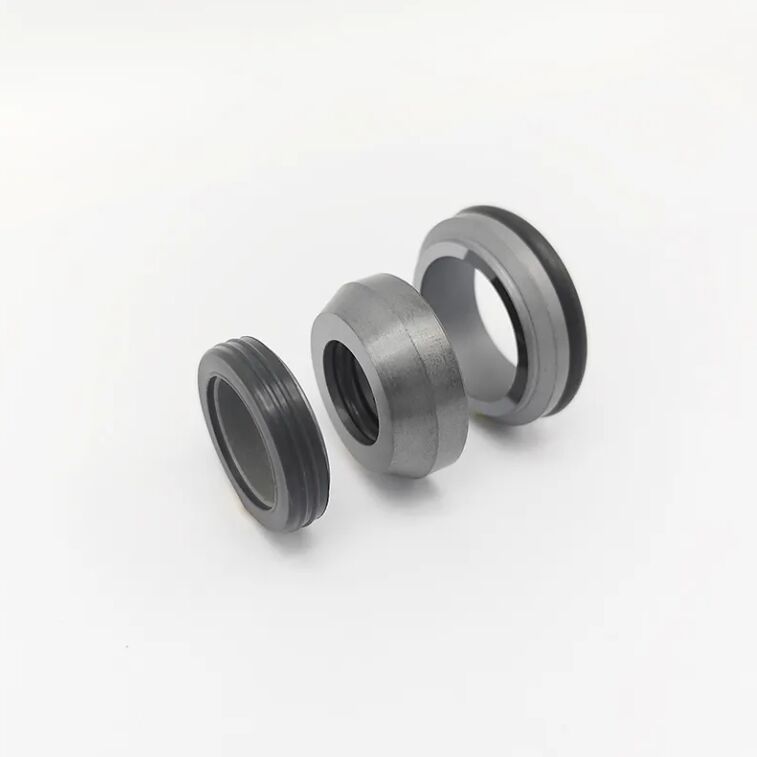

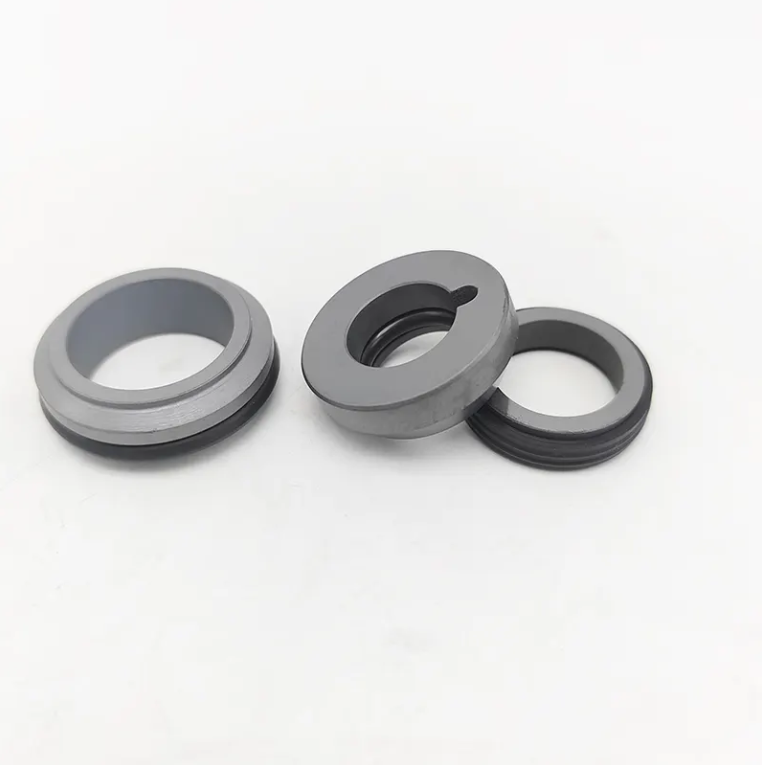

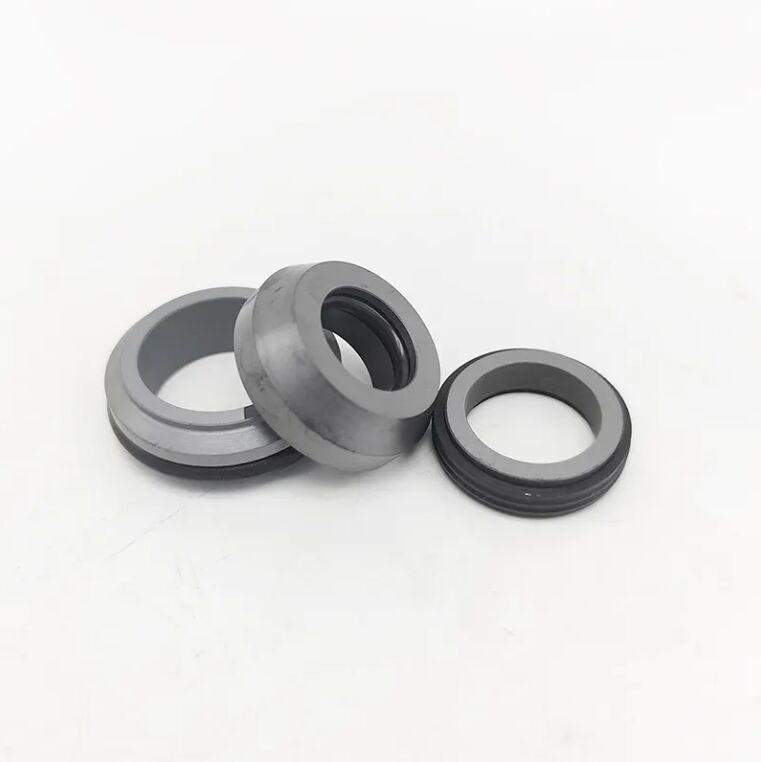

Shaft Seals AES SOS Mechanical Seal for SE SV Submersible Pumps



Operational Conditions:

  1. Suit for Grund SE- and SV series submersible pumps
  2. Temperature: -20ºC to +180ºC
  3. Pressure: ≤2.5MPa
  4. Speed: ≤15m/s

 Materials:

  • Stationary Ring: Ceramic, Silicon Carbide, TC
  • Rotary Ring: Carbon, Silicon Carbide
  • Secondary Seal: NBR, EPDM, FKM, PTFE
  • Spring and Metal Parts: Steel
  • 3. Seat Type:
  • 4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids



Performance Capabilities



Temperature
-40℃ to 200℃, dependent on the elastomer
Pressure
Up to 8 bar
Speed
Up to 18 m/s
End play/axial float allowance
±0.1mm
Size
16mm
Brand
JR
Face
Carbon, SiC, TC
Seat
Carbon, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.


Mechanical Seal for SE SV Submersible Pumps 0Mechanical Seal for SE SV Submersible Pumps 1Mechanical Seal for SE SV Submersible Pumps 2Mechanical Seal for SE SV Submersible Pumps 3

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.



Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
